Details
| Category | Extrusion lines |
|---|---|
| Kind | Cast lines |
| Brand | Diamat |
| Model | FLA |
| Year | 1997 |
| Meltpump (0=no 1=yes) | 0 |
| Calander width (mm) | 680 |
| Calander roll diam (1/2/3) (mm) | 300,115,300 |
| Airknive (0=no 1=yes) | 0 |

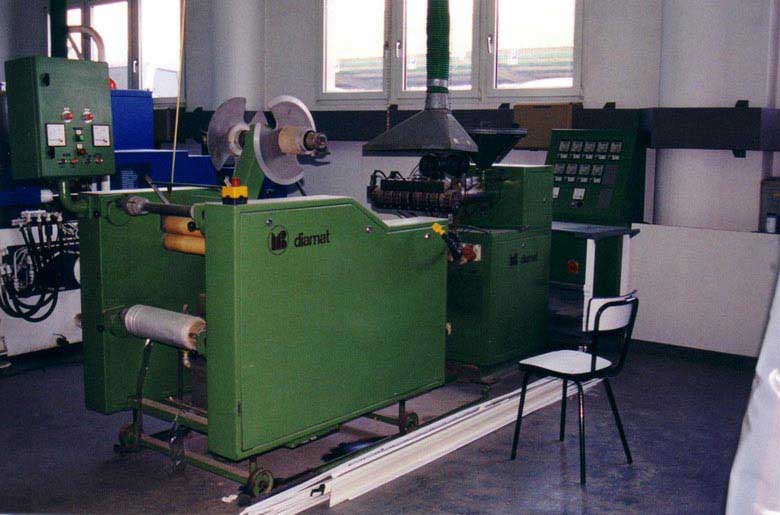

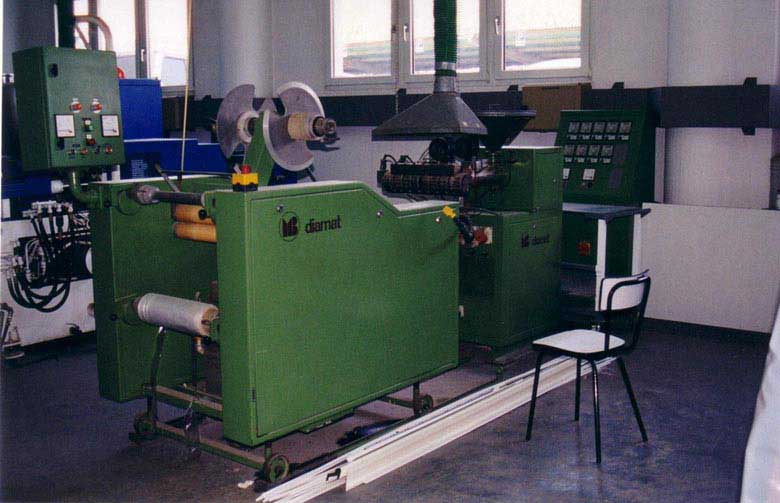

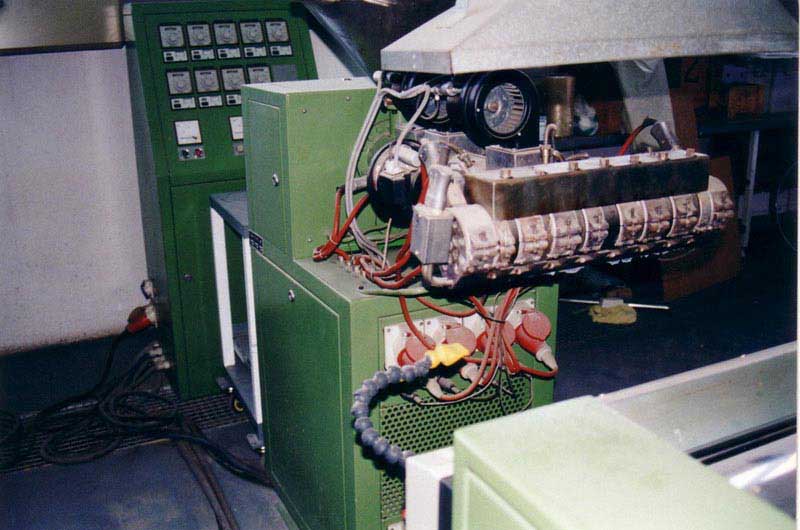

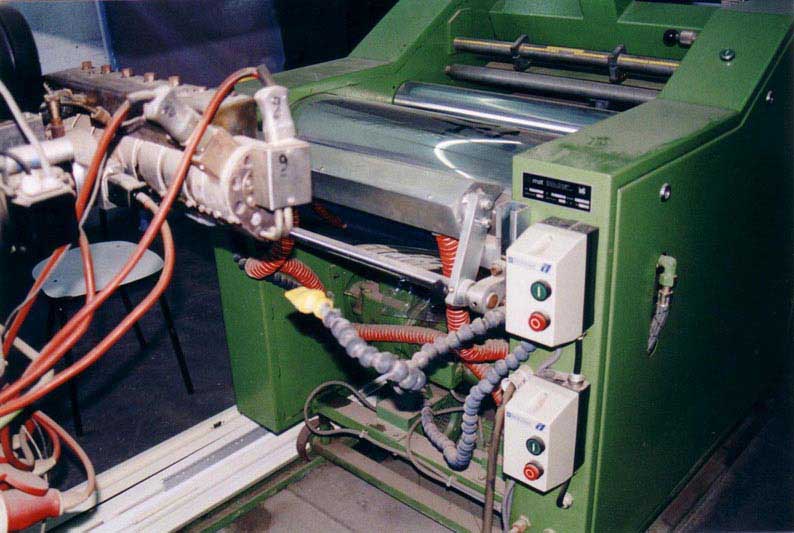

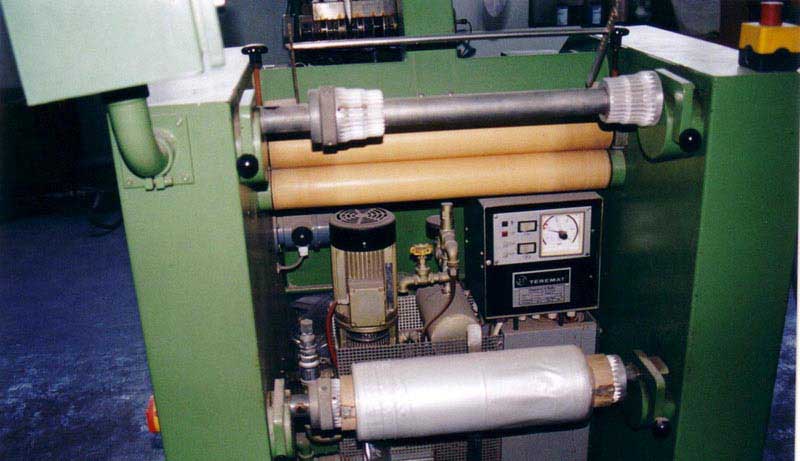

| Notes | Make: Diamat Model :FLA Year: 1997 Included: 2 dies width 500 mm flex lip, max 0.7 mm opening. Assembled Group with 2 big Heating cooling rollers diameter 300 mm, width 680 mm, interval roller diameter 115 mm , width 680 mm, haul off diameter 75 mm, 680 mm wide, 2 bobbin winder 500 mm wide and 500 mm max diameter, control panel for the above. Speed max 100 meters per minute. Heating cooling unit: Teremat max 150 degrees, 10.9 kw Lateral cut winders. Working hours: few ex labo line. |
- Images:
-
-
