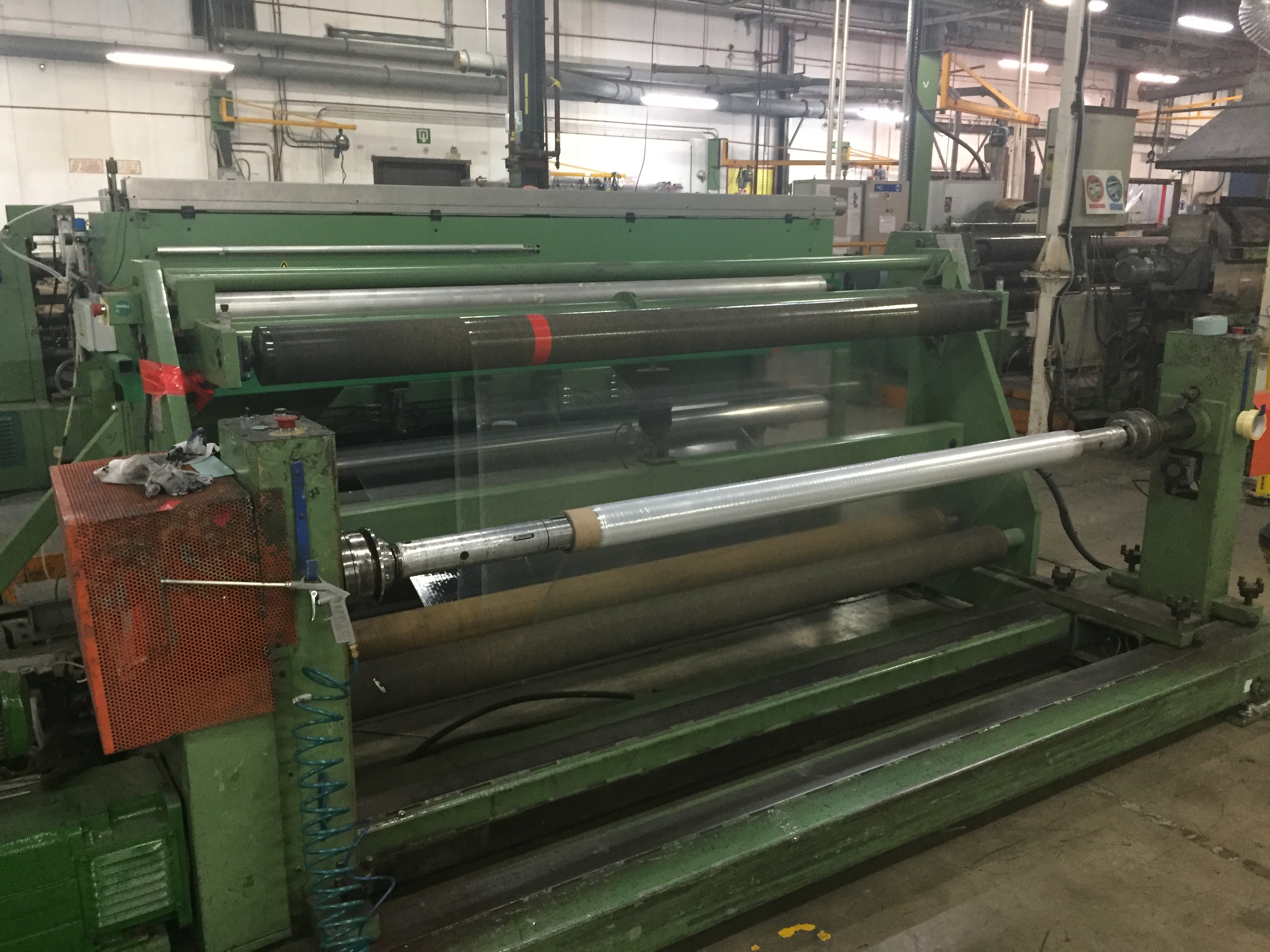

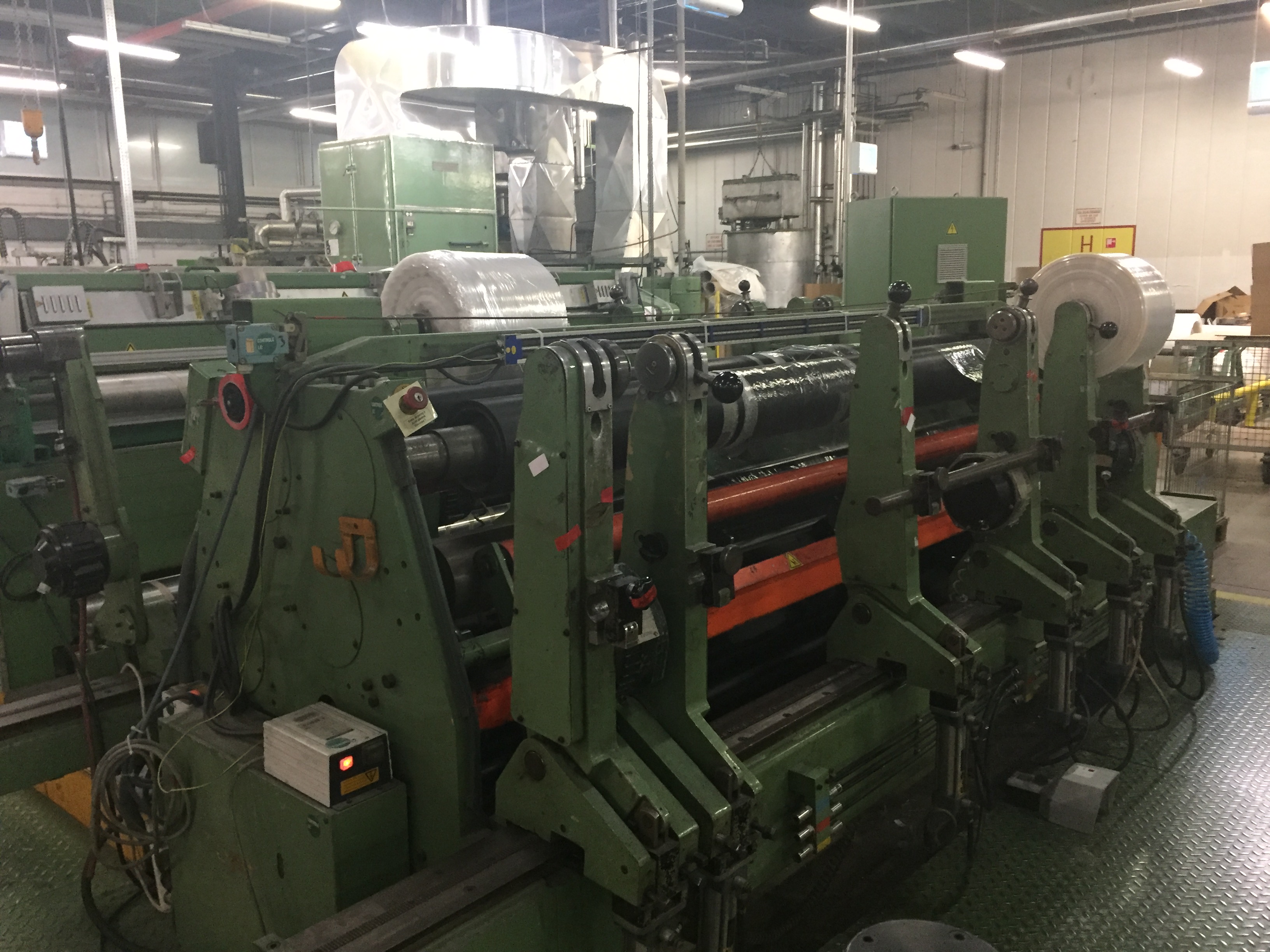

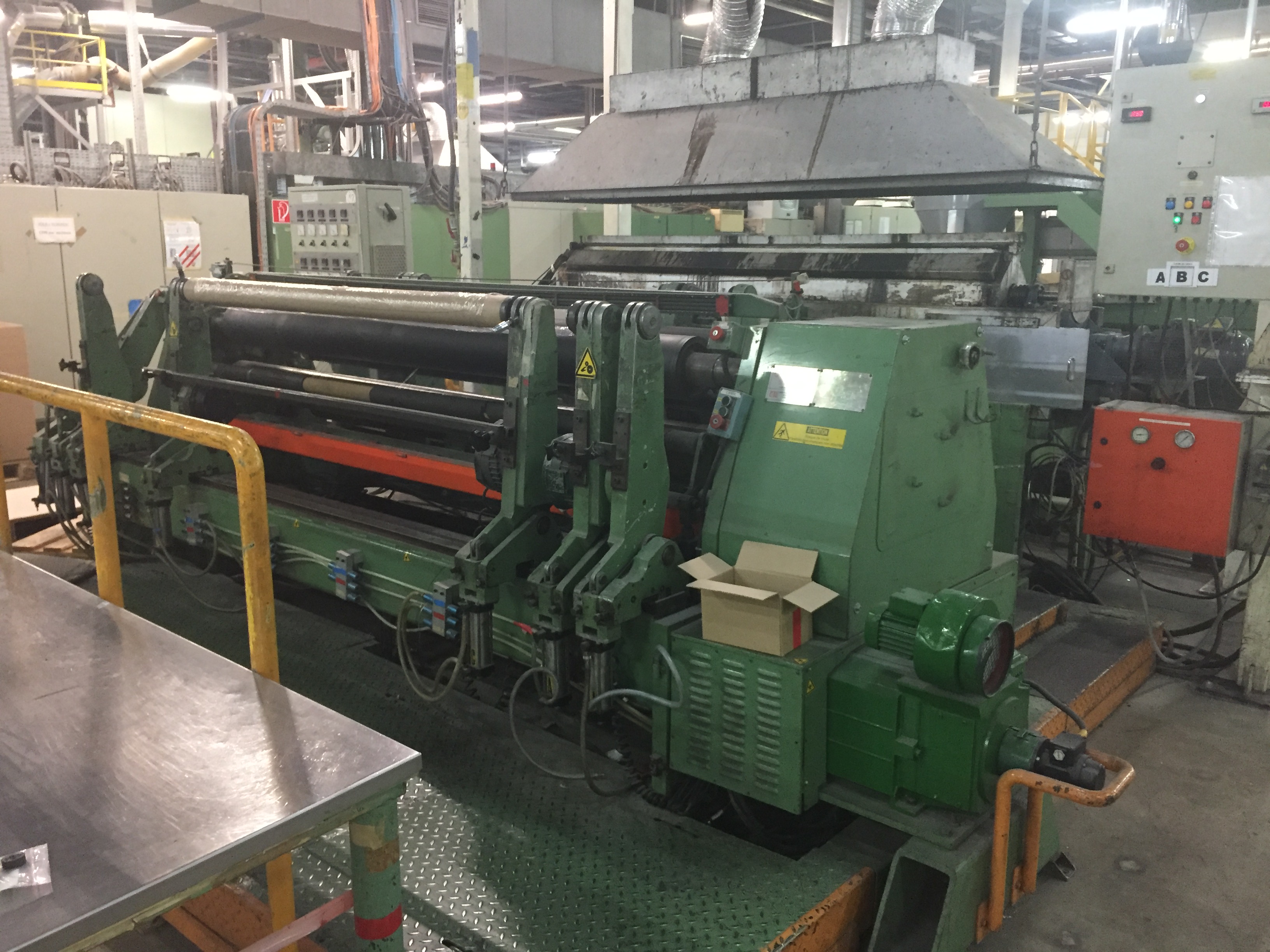

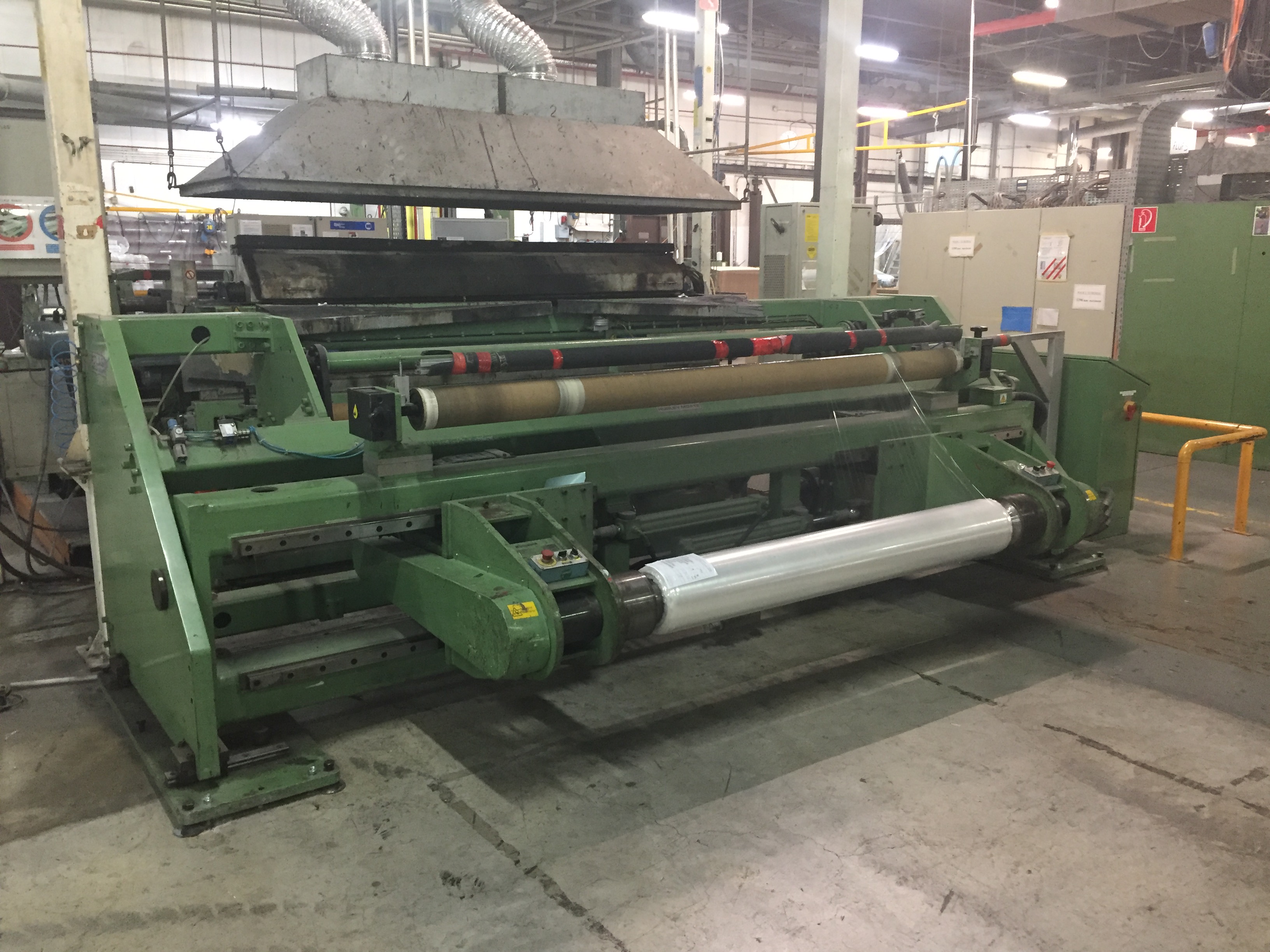

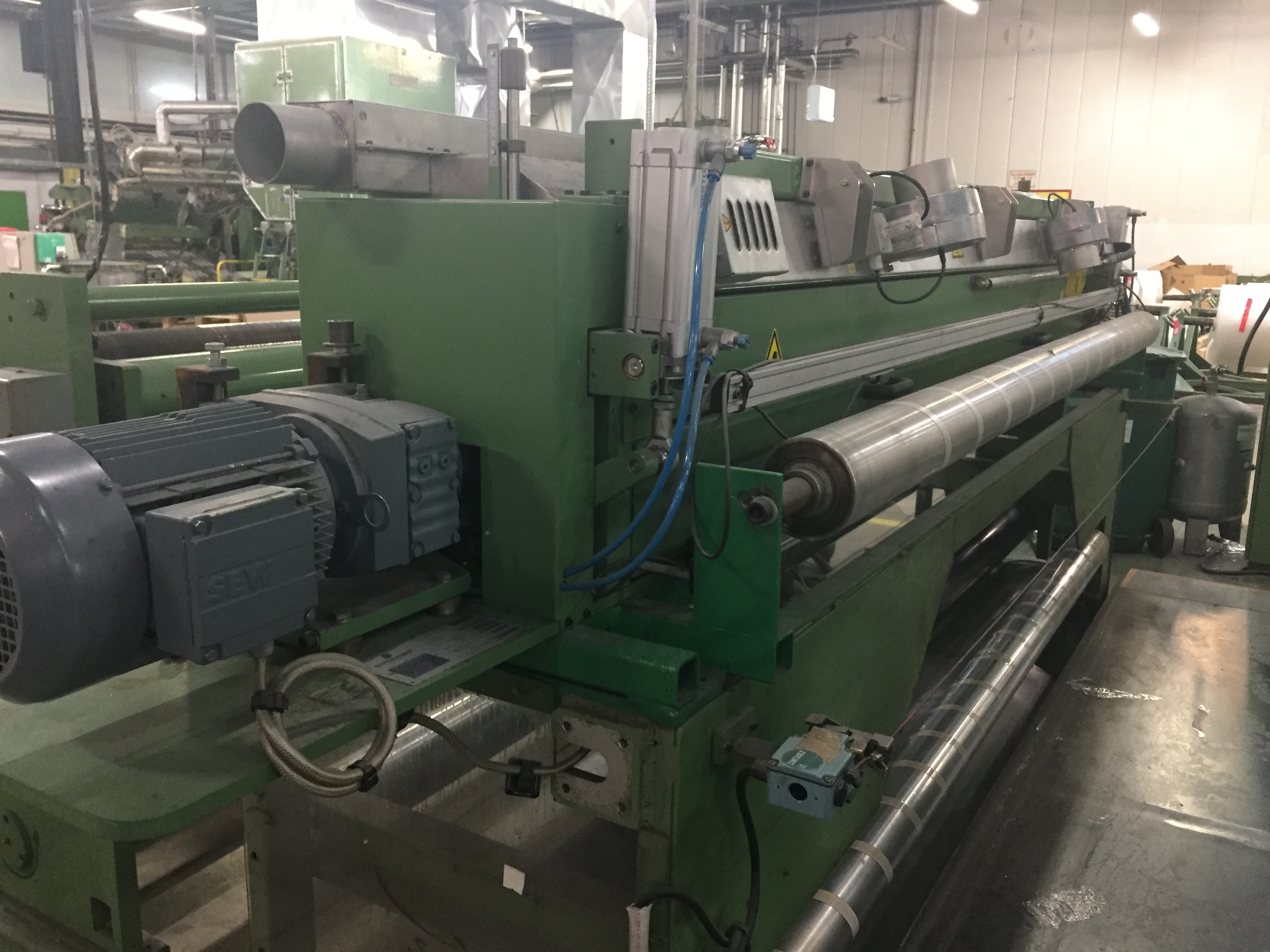

Dusenbery Slitter
2 lines with identical caracteristics:

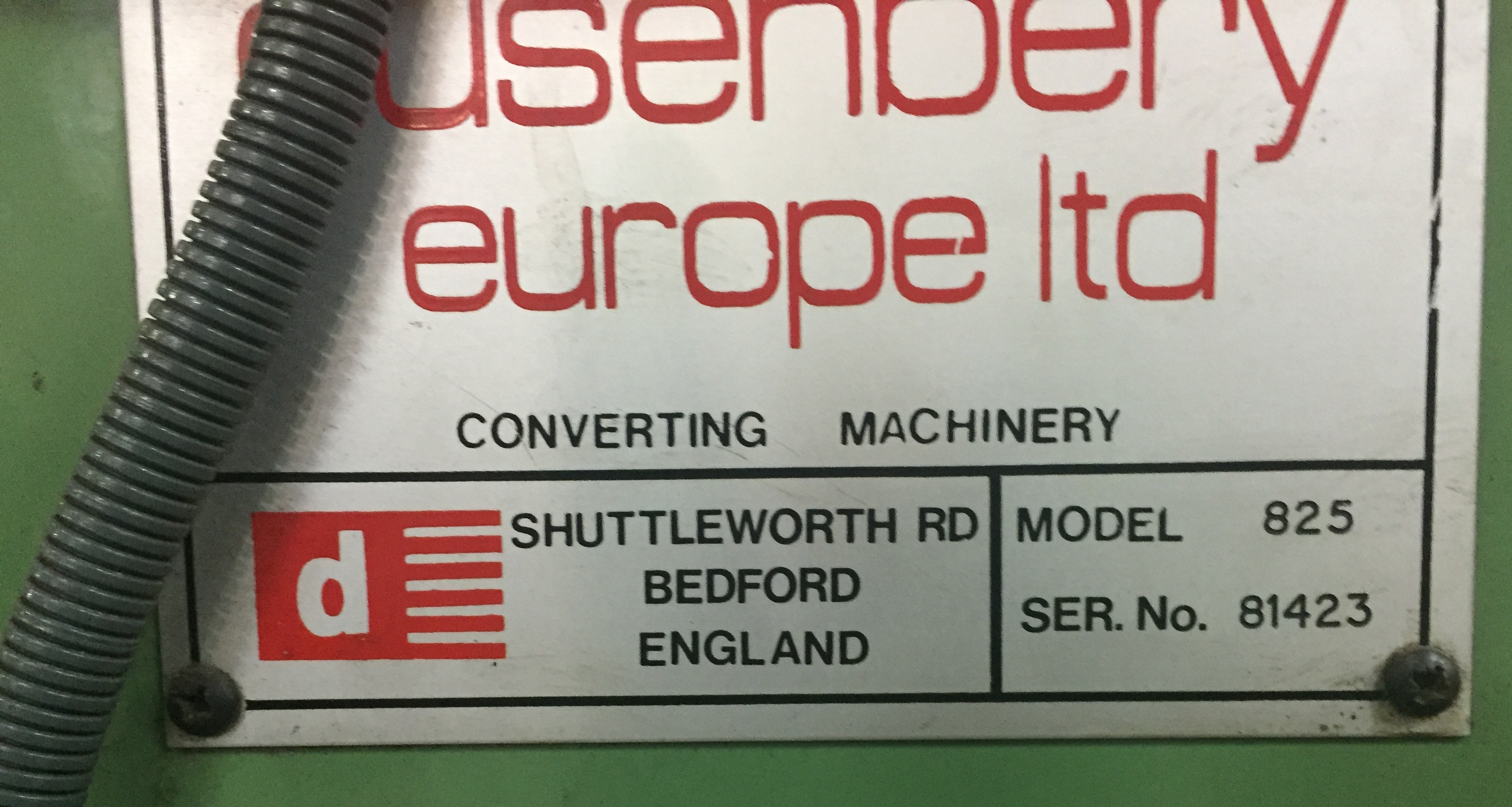

- Dusenbery Model 825 Serial n° 81423 (Year 1984/1997)
- ATLAS Hurley Moate (Year 1990)
Working Width: 2600 mm Materials: PP/PE – Pet/PE -- PA/PE - PP/PP - PP Coex Shrink film
Thickness : 250µ - 13µ
Parent Roll Diameter: 1000 mm Final Roll Diameter: 800mm
Speed: 400 m/min Unwinder Type: 1Singles shaft
Brake Type: Electrical Web Guides: Yes
Splicing Table: No Knife Type: Razor blades
Slitting Width (Min): 2600 mm Slitting Width (Max): 1780 mm
Number Of Slits: 4 Finished Roll Weight: 750 kg
Roll Core Diameter: 76mm Rewinder Tension: kN
Number Of Stations: 4
Other details:
: Dusenbery Year 1984/1997 – Atlas Year 1990
Perfored station Burckhardt installed + Totally new station not installed for each line
Spare parts as: Brush Rolls, needle rings, etc
price is per unit.
|
